Queues

A queue is a first-in first-out data structure (FIFO). Conceptually, the queue data structure behaves like a line. New data is placed at the rear of the queue and when data is removed it is taken from the front. A printer maintains a list of jobs in a queue; the oldest job, the one that has been in the queue the longest, is serviced first.

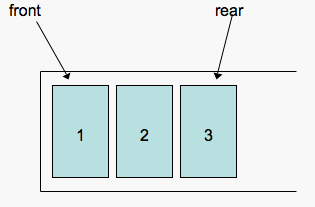

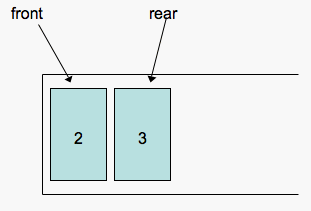

A dequeue on the queue above would return the object 1 and the resulting queue would look as follows:

A front on the queue above would return the object 2 and the queue itself would remain unchanged.

Implementation

A queue can be implemented using an array or a linked list. In essense, the queue operations simply limit the way in which we access data stored in a data structure such as an array. A queue can also be implemented using two stacks and a stack using two queues. Though these implementations are not terribly efficient, it is a good exercise to consider how you would build such an implementation.

When choosing which rudimentary data structure to use for an implementation, it is imperative that you consider efficiency. How many steps will enqueue and dequeue require?

To implement a queue, you will need to implement a Queue class that provides the queue operations described above. You will also want to provide appropriate error reporting. Therefore, it might make sense to have the dequeue operation throw a QueueEmptyException in the event that the programmer tries to dequeue from a queue with no elements.

To implement a queue using an array, your Queue class will require an array data member. The enqueue method will place a new object in the appropriate location in the array. The dequeue method will return the appropriate object from the array.

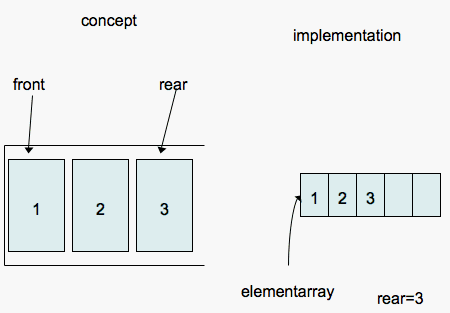

A queue with no elements will contain an array data member with no elements. When the first element is enqueued, where should the element be placed? You can place the element anywhere in the array, but position 0 makes sense. The second element should be placed at position 1, and so on. After enqueuing elements 1, 2, and 3, the conceptual model and underlying implementation would look as follows:

queues 3

The pseudocode for enqueue would look as follows:

enqueue(o):
        if rear -- elementarray.length
                throw new QueueFullException
        elementarray[rear++] = o

The big-oh running time of enqueue is constant.

Now, consider how you would implement dequeue. One option would be to remove the 0th element (in this case 1) by moving all of the other elements to the left. This, however, would be a costly O(N) operation. Fortunatley, the operation can be implemented in O(1) time by using a circular array.

To implement a circular array, you must maintain the index of the rear of the queue and the index of the front of the queue. The general algorithm for dequeue is as follows, though we'll next identify a problem with this algorithm:

dequeue-first-cut():
	if size > 0
		tmp = elementarray[front]
		front++
		return tmp
	else
		throw new QueueEmptyException

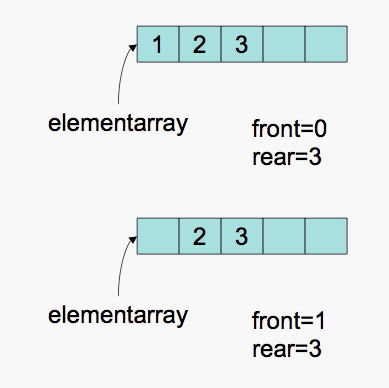

The result of executing a deque on an array of three elements would look as follows:

queues 4

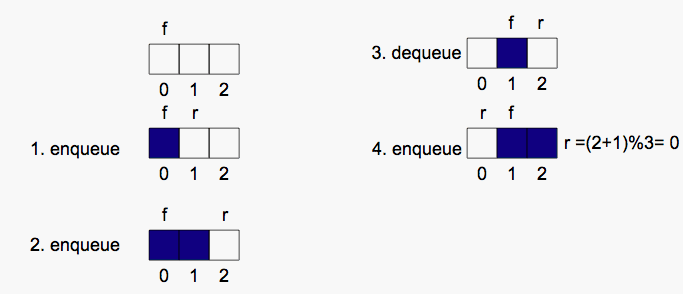

Next, consider what would happen if you were to enqueue N elements, where N is the size of your element array, and then dequeue all N elements. Your element array would be empty, seemingly indicating that you could enqueue another element. However, using the preceeding algorithm, front would be N and you would end up with an ArrayIndexOutOfBoundsException if you were to attempt to place an element there. To take advantage of every empty slot in your array, front and rear should wrap around to position 0 when the end of the array is reached. This can be accomplished using modulo arithmetic. Rather than simply incrementing front and rear as we have in the preceeding algorithms, we set front = (front+1)%N and rear = (rear+1)%N. Following is a complete example:

queues 5
